Suspended Plate Magnet Permanent Magnet For Belt Conveyor

1. Type: Suspended Plate Magnet

2. Dimensions:Standard size of Customized

3. Material: NdFeB/Ferrite Magnet + SUS304/SUS316 Stainless Steel
4. Magnetic Action Range: As required

5. Max working temp.: 80℃
6. Surface treatment: Well polishing,Spray paint processing


INQUIRE now
  • Product Detail
  • Technical Specifications
Suspended plate magnet remove undesirable ferromagnetic particles from material flows containing relatively little Fe contamination.They are placed above flat or trough-shaped conveyor belts.Metal particales are sucked out of the materials flows and held by magnets.

Plate magnet suitable for removing iron from non-magnetic materials on belt conveyors,vibrating conveyors,feeders,and unloading chutes.

Types of Plate Magnet
1. Flush face plate magnet
2. Exposed pole plate magnet
3. Spout plate magnet
4. Suspended plate magnet

Features of Plate Magnet
1. Maintenance-free
2. Strong magnetic force
3. Simple installation
4. Easy to use
5. Long life

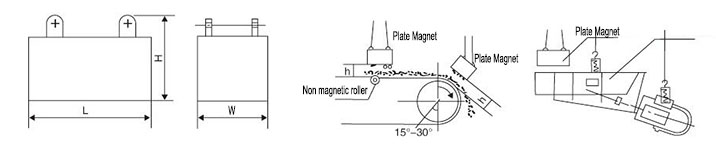

Specifications of suspended plate magnet

Model
Belt Width
(mm)
Rated Hanging High
h=(mm)
Expected Burden Depth Of Material On Belt
(≦mm)
Magnetic Field
(≧mT)
Belt Speed
(m/s)
Dimensions (mm)
Net Weight
(KG)
L W H
RCYB-4 400 130 80 63 2.5 400 300 210 115
RCYB-5 500 150 100 63 500 400 230 180
RCYB-6 600/650 180 130 63 600 500 250 300
RCYB-6.5 650 200 150 65 650 600 250 450
RCYB-8 800 250 200 70 800 700 250 580
RCYB-10 1000 300 250 70 1000 8000 250 880
RCYB-12 1200 350 300 70 1200 1000 270 1100
RCYB-14 1400 400 350 70 1400 1300 270 1700
RCYB-16 1600 450 400 70 1600 1500 270 2200

Magnetic Properties Of Sintered Neodymium Magnet
Series Grade Max Operating Temp.  ℃
Remanence Br
mT(KG)
Coercivity Hcb
KA/m(KOe)
Intrinsic Coercivity Hcj
KA/m(KOe)
Maximium Energy Product
 (BH)max  KJ/m3 (MGOe)
N Series N35 80℃ 1170-1220
(11.7-12.2) 		≥868（≥10.9） ≥955（≥12） 263-287(33-36)
N38 80℃ 1220-1250
(12.2-12.5) 		≥899（≥11.3） ≥955（≥12） 287-310(36-39)
N40 80℃ 1250-1280
(12.5-12.8) 		≥907（≥11.4） ≥955（≥12） 302-326(38-41)
N42 80℃ 1280-1320
(12.8-13.2) 		≥915（≥11.5） ≥955（≥12） 318-342(40-43)
N45 80℃ 1320-1380
(13.2-13.8) 		≥923（≥11.6） ≥955（≥12） 342-366(43-46)
N48 80℃ 1380-1420
(13.8-14.2) 		≥923（≥11.6） ≥955（≥12） 366-390(46-49)
N50 60℃ 1400-1450
(14.0-14.5) 		≥796（≥10.0） ≥876（≥11） 382-406(48-51)
N52 60℃ 1430-1480
(14.3-14.8) 		≥796（≥10.0） ≥876（≥11） 398-422(50-53)
N55 60℃ 1470-1520
(14.7-15.2) 		≥796（≥10.0） ≥876（≥11） 414-438(52-56)
