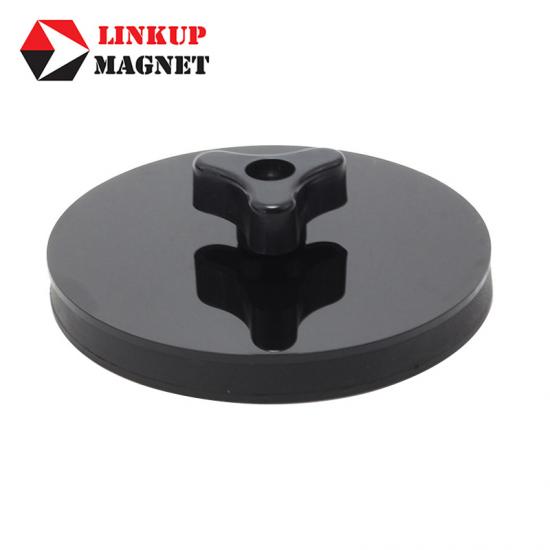

Rubber Coated Magnet For Car Roof Advisting Base

1. Type: Rubber coated magnet
2. Material: Neodymium magnet + A3 steel base + Rubber Coated
3. Shape: Round
4. Dimensions: D43,D66,D88mm
Cleck here to check the catalog of rubber coated magnet
5. Surface Treatment: Black rubber coated
6. Magnetized: Axial magnetized
7. Working Temp.: Up to 60
8. Custom Logo: Silk-screen printing,Gravure logo,Protruding log
  • Product Detail
  • Technical Specifications
Rubber coated pot magnets that act as magnetic bases for mounting and holding are called rubber coated mounting magnets and rubber coated holding magnets.They are the best strong magnet assemblies,which provide solutions of waterproof and rust-proof magnetic clamping to longer the service life.

Rubber coated pot magnet can be also made with an internal(female) threaded,external(male) threaded and screwed bush on one non-magnetic side.Because of the soft rubber,scratches are avoided on the surface of contacted objects.You can use the rubberized magnetic system as a magnetic base on cars and fridges for mounting or holding objects.

Specifications Of Rubber Coated Magnet For Car Roof Advisting Base

Model D(mm) H(mm) h(mm) Weight(g) Pull Force(KG)
LURH22 43 23 6 42 10
LURH31 66 26 8.5 108 18
LURH43 88 26 8.5 197 42

Magnetic Properties Of Sintered Neodymium Magnet
Series Grade Max Operating Temp.
Remanence Br
mT(KG)
Coercivity Hcb
KA/m(KOe)
Intrinsic Coercivity Hcj
KA/m(KOe)
Maximium Energy Product
 (BH)max  KJ/m3 (MGOe)
N Series N35 80 1170-1220
(11.7-12.2)
≥868≥10.9 ≥955≥12 263-287(33-36)
N38 80 1220-1250
(12.2-12.5)
≥899≥11.3 ≥955≥12 287-310(36-39)
N40 80 1250-1280
(12.5-12.8)
≥907≥11.4 ≥955≥12 302-326(38-41)
N42 80 1280-1320
(12.8-13.2)
≥915≥11.5 ≥955≥12 318-342(40-43)
N45 80 1320-1380
(13.2-13.8)
≥923≥11.6 ≥955≥12 342-366(43-46)
N48 80 1380-1420
(13.8-14.2)
≥923≥11.6 ≥955≥12 366-390(46-49)
N50 60 1400-1450
(14.0-14.5)
≥796≥10.0 ≥876≥11 382-406(48-51)
N52 60 1430-1480
(14.3-14.8)
≥796≥10.0 ≥876≥11 398-422(50-53)
N55 60 1470-1520
(14.7-15.2)
≥796≥10.0 ≥876≥11 414-438(52-56)
