Rubber Coated Magnet
Rubber Coated Magnet Rubber Coated Magnet Rubber Coated Magnet Rubber Coated Magnet Rubber Coated Magnet Rubber Coated Magnet

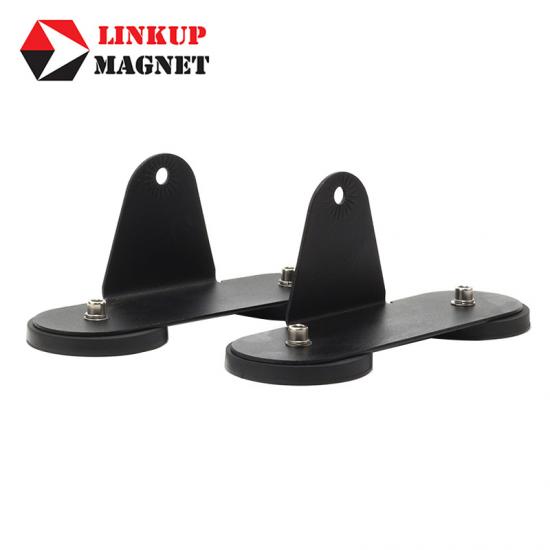

Magnetic Sucker Holder With Rubber Coated Magnet

1. Type: Magnetic sucker holder with rubber coated magnet
2. Material: Neodymium magnet + A3 steel base + Rubber Coated
3. Dimensions: D66,D88 mm
Cleck here to check the catalog of rubber coated magnet
4. Surface Treatment: Black rubber coated
5. Magnetized: Axial magnetized
6. Working Temp.: -40℃ to 80℃
7. Custom Logo: Silk-screen printing,Gravure logo,Protruding log
INQUIRE now
  • Product Detail
  • Technical Specifications
Rubber coated pot magnets that act as magnetic bases for mounting and holding are called rubber coated mounting magnets and rubber coated holding magnets.They are the best strong magnet assemblies,which provide solutions of waterproof and rust-proof magnetic clamping to longer the service life.

Rubber coated pot magnet can be also made with an internal(female) threaded,external(male) threaded and screwed bush on one non-magnetic side.Because of the soft rubber,scratches are avoided on the surface of contacted objects.You can use the rubberized magnetic system as a magnetic base on cars and fridges for mounting or holding objects.

Specifications Of Magnetic Sucker Holder With Rubber Coated Magnet

LURSA

Model D(mm) H(mm) L(mm) d(mm) Weight(g) Pull Force(KG)
LURSA66 66 80 185 8 400 40
LURSA88 68 80 210 8 600 160

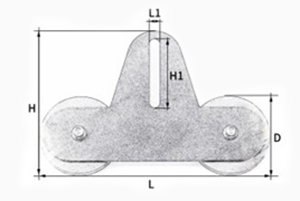

LURSB

Model D(mm) H(mm) L(mm) H1(mm) L1(mm) Weight(g) Pull Force(KG)
LURSB66 66 125 185 60 8 365 40
LURSB88 68 125 210 60 8 560 80

LURSC

Model D(mm) H(mm) L(mm) d(mm) Weight(g) Pull Force(KG)
LURSC66 66 30 170 10 345 40
LURSC88 68 30 195 10 545 80

LURSD
Model D(mm) H(mm) L(mm) L1(mm) d(mm) Weight(g) Pull Force(KG)
LURSD66 66 60 185 45 10 400 40
LURSD88 68 60 210 45 10 605 80

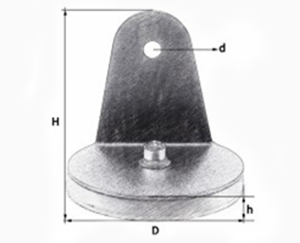

LURSE

Model D(mm) H(mm) h(mm) d(mm) Weight(g) Pull Force(KG)
LURSE88 88 80 10.5 10 305 45



Magnetic Properties Of Sintered Neodymium Magnet
Series Grade Max Operating Temp.  ℃
Remanence Br
mT(KG)
Coercivity Hcb
KA/m(KOe)
Intrinsic Coercivity Hcj
KA/m(KOe)
Maximium Energy Product
 (BH)max  KJ/m3 (MGOe)
N Series N35 80℃ 1170-1220
(11.7-12.2) 		≥868（≥10.9） ≥955（≥12） 263-287(33-36)
N38 80℃ 1220-1250
(12.2-12.5) 		≥899（≥11.3） ≥955（≥12） 287-310(36-39)
N40 80℃ 1250-1280
(12.5-12.8) 		≥907（≥11.4） ≥955（≥12） 302-326(38-41)
N42 80℃ 1280-1320
(12.8-13.2) 		≥915（≥11.5） ≥955（≥12） 318-342(40-43)
N45 80℃ 1320-1380
(13.2-13.8) 		≥923（≥11.6） ≥955（≥12） 342-366(43-46)
N48 80℃ 1380-1420
(13.8-14.2) 		≥923（≥11.6） ≥955（≥12） 366-390(46-49)
N50 60℃ 1400-1450
(14.0-14.5) 		≥796（≥10.0） ≥876（≥11） 382-406(48-51)
N52 60℃ 1430-1480
(14.3-14.8) 		≥796（≥10.0） ≥876（≥11） 398-422(50-53)
N55 60℃ 1470-1520
(14.7-15.2) 		≥796（≥10.0） ≥876（≥11） 414-438(52-56)
