Home /Magnetic Assembly /Office Magnet /Transparent Magnetic Push Pin

Magnetic Push Pin
Magnetic Push Pin

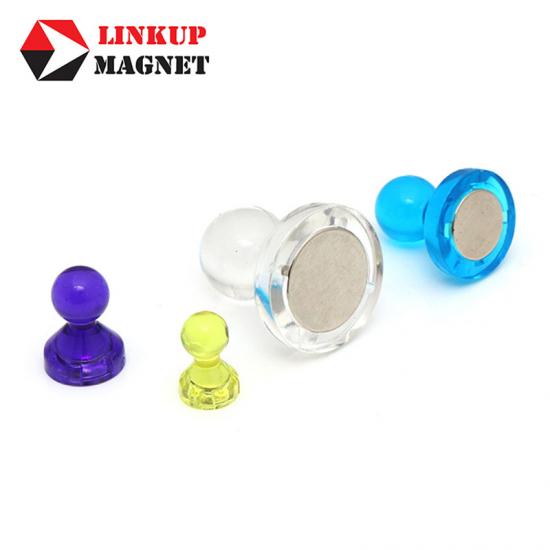

Transparent Magnetic Push Pin

1. Type: Magnetic Push Pin
2. Material: Neodymium magnet + Transparent plastic cup
3. Shape: Round

4. Dimensions: D11x17mm,D15x21mm,D21x26mm,D27x33mm

5. Grade of Magnet: N40

6. Surface Treatment: Nickel + Colorful plastic cup

7. Magnetized: Axial Magnetized

8. Max working Temp.: -40℃ to 80℃

INQUIRE now
  • Product Detail
  • Technical Specifications
Available dimensions of transparent magnetic push pin
Model D(mm) D1(mm) d(mm) H(mm) h(mm) Weight(g)
Hold A4
On White Board
D11*17 11 9 4.2 17.6 3.5 1.4 11 Pieces
D15*21 15 11 5 21 3.5 2.8 15 Pieces
D21-26 21 13.5 5.5 26 4.5 6.7 20 Pieces
D27*33 27 18 8.5 33 5.5 16 27 Pieces

Advantages of plastic push pin magnet
1. Mini & Easy Use: Design in chess shape,small and easy to take and put.
2. Powerful Magnet: Made of srong neodymium magnet,unbelievable holding power for the size.
3. Multiple Colors: Multiple color choose,beautiful style. Can made by customs.
4. Unlimited Applications: Office whiteboard,refrigerator,home multiple use.

Magnetic Properties Of Sintered Neodymium Magnet
Series Grade Max Operating Temp.  ℃
Remanence Br
mT(KG)
Coercivity Hcb
KA/m(KOe)
Intrinsic Coercivity Hcj
KA/m(KOe)
Maximium Energy Product
 (BH)max  KJ/m3 (MGOe)
N Series N35 80℃ 1170-1220
(11.7-12.2) 		≥868（≥10.9） ≥955（≥12） 263-287(33-36)
N38 80℃ 1220-1250
(12.2-12.5) 		≥899（≥11.3） ≥955（≥12） 287-310(36-39)
N40 80℃ 1250-1280
(12.5-12.8) 		≥907（≥11.4） ≥955（≥12） 302-326(38-41)
N42 80℃ 1280-1320
(12.8-13.2) 		≥915（≥11.5） ≥955（≥12） 318-342(40-43)
N45 80℃ 1320-1380
(13.2-13.8) 		≥923（≥11.6） ≥955（≥12） 342-366(43-46)
N48 80℃ 1380-1420
(13.8-14.2) 		≥923（≥11.6） ≥955（≥12） 366-390(46-49)
N50 60℃ 1400-1450
(14.0-14.5) 		≥796（≥10.0） ≥876（≥11） 382-406(48-51)
N52 60℃ 1430-1480
(14.3-14.8) 		≥796（≥10.0） ≥876（≥11） 398-422(50-53)
N55 60℃ 1470-1520
(14.7-15.2) 		≥796（≥10.0） ≥876（≥11） 414-438(52-56)
