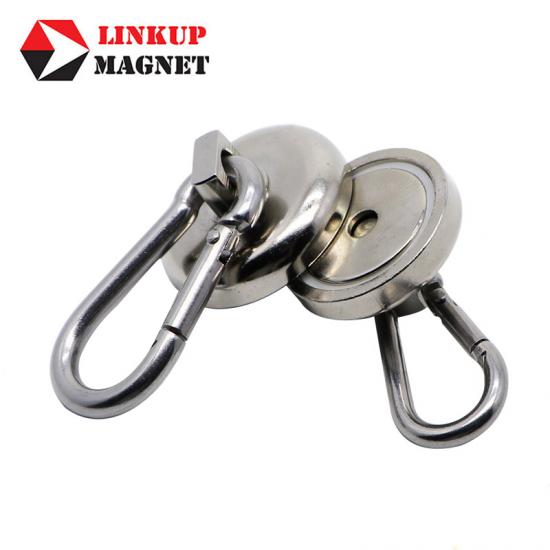

Neodymium Magnetic Hook With Carabiner Hook

1. Type: Neodymium Magnetic Hooks
2. Material: Neodymium magnet + A3 steel cup + ABS plastic ring or Epoxy resin + Carabiner Hook
3. Shape: Round
4. Dimensions: D25,D32,D36 mm
Cleck here to check the catalog of hook magnet
5. Grade of Magnet: N42
6. Surface Treatment: Nickel,Zinc,Epoxy or Electrophoretic colorful paint
7. Magnetized: Axial Magnetized
8. Max working Temp.: -40 to 80℃ (for higher working temp. can be customized)

  • Product Detail
  • Technical Specifications
Pot magnet with a hook called a magnetic hook or hook magnet.Magnetic hooks are great magnetic tools for hanging,holding,and mounting.To meet different application demands,the pot magnet can be assembled with a open hook,eyebolt hook,swivel hook,carabiners hook. The hook magnets can be also made with rubber coated or plastic case.

Neodymium magnet has excellent magnetic energy,which let it be the best material for magnetic hooks.
Neodymium strong magnetic hooks can be used to hanging any weighted object in daily life,it provide super-powerful magneitc hanging strength on the small volume.

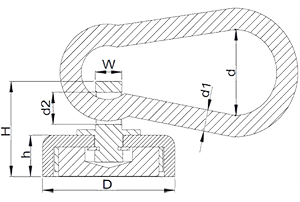

Specifications Of Neodymium Magnetic Hook With Carainber Hook

Model D(mm) d(mm) d1 (mm) d2 (mm) W(mm) H(mm) h (mm) Weight(g) Breakaway(kg)
HSNL25 25 12 4 6.5 5 18.5 8 30 17
HSNL32 32 12 4 6.5 5 18.5 8 47 28
HSNL36 36 15 5 6.5 5 18.5 8 59 35
Customized neodymium magnetic hook are available for special needs.
Magnetic Properties Of Sintered Neodymium Magnet
Series Grade Max Operating Temp.
Remanence Br
mT(KG)
Coercivity Hcb
KA/m(KOe)
Intrinsic Coercivity Hcj
KA/m(KOe)
Maximium Energy Product
 (BH)max  KJ/m3 (MGOe)
N Series N35 80 1170-1220
(11.7-12.2)
≥868≥10.9 ≥955≥12 263-287(33-36)
N38 80 1220-1250
(12.2-12.5)
≥899≥11.3 ≥955≥12 287-310(36-39)
N40 80 1250-1280
(12.5-12.8)
≥907≥11.4 ≥955≥12 302-326(38-41)
N42 80 1280-1320
(12.8-13.2)
≥915≥11.5 ≥955≥12 318-342(40-43)
N45 80 1320-1380
(13.2-13.8)
≥923≥11.6 ≥955≥12 342-366(43-46)
N48 80 1380-1420
(13.8-14.2)
≥923≥11.6 ≥955≥12 366-390(46-49)
N50 60 1400-1450
(14.0-14.5)
≥796≥10.0 ≥876≥11 382-406(48-51)
N52 60 1430-1480
(14.3-14.8)
≥796≥10.0 ≥876≥11 398-422(50-53)
N55 60 1470-1520
(14.7-15.2)
≥796≥10.0 ≥876≥11 414-438(52-56)
